Electrostatic Powder Coating Machine, FLEX-2C (Bench-Mount, Proportional Valve)
Contact for quote
A bench-mount electrostatic powder coating machine with proportional valve control, performing well in precision spraying of small parts and powder experiments.
Bench-mount electrostatic powder coating machine combined with proportional valve control, giving strong performance in precision spraying of small parts and a wide range of powder experiments. Supplied on an adjustable stand with spray gun and powder cup.
Request a Quote for This ItemTechnical Specifications
| Model | FLEX-2C |
|---|---|
| Format | Bench-mount stand, proportional valve control |
| Min. Input Pressure (dynamical) | 6 bar |
| Max. Input Pressure | 10 bar |
| Max. Water Vapor Content | 1.3 g/m³ |
| Max. Oil Vapor Content | 0.1 mg/m³ |
| Max. Compressed Air Consumption | 8 Nm³/h |
| Input Voltage | 100V–240V |
| Frequency | 50–60Hz |
| Powder Charge Rate | 90–95% |
More from Painting Machines and Tools
painting machines-and-tools

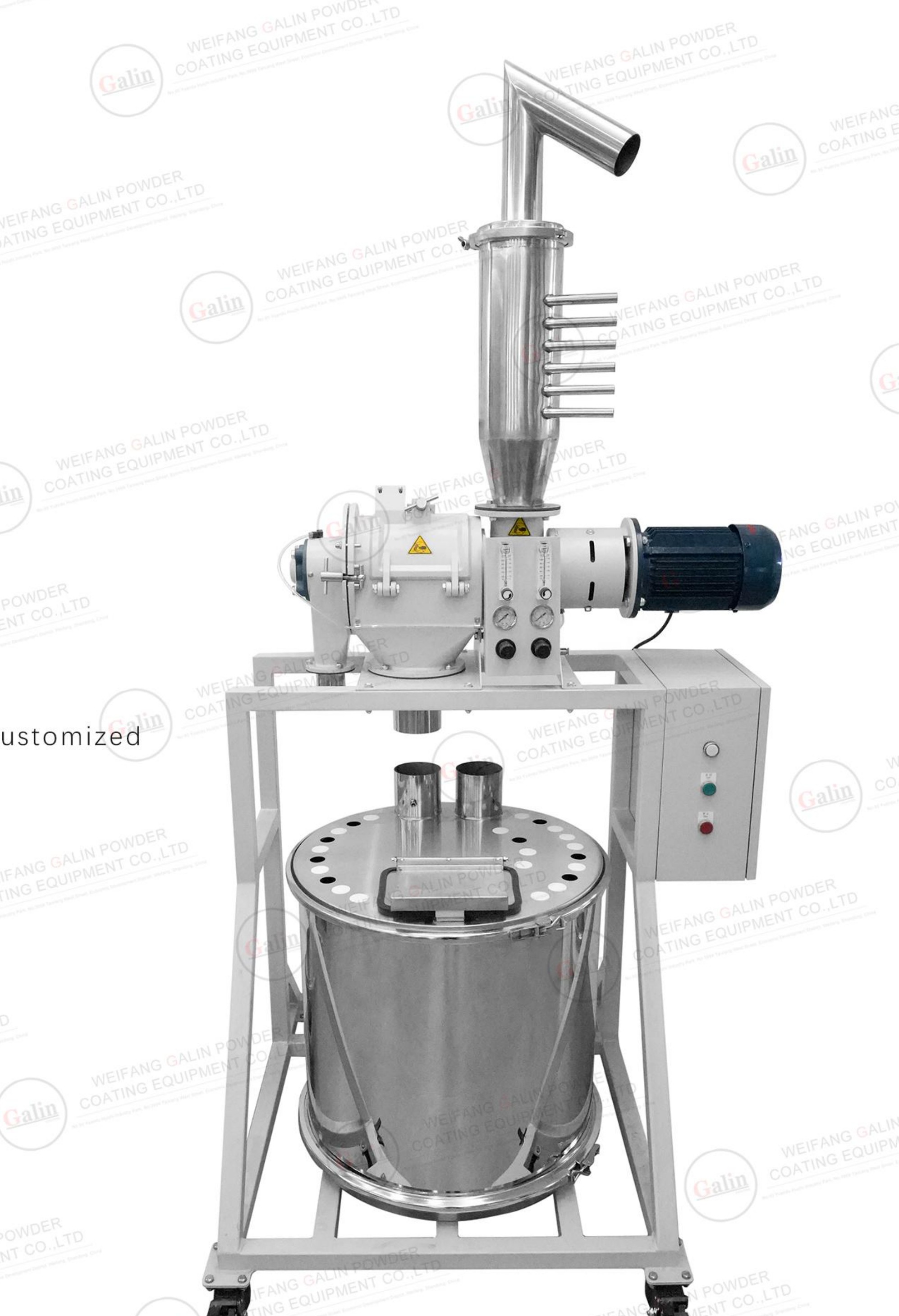

Cyclone Powder Recovery & Screening System, LV-04 (200kg/h)
A motorized cyclone recovery unit with rotary centrifugal screening, capable of sifting 200kg of reclaimed powder per hour.
painting machines-and-tools

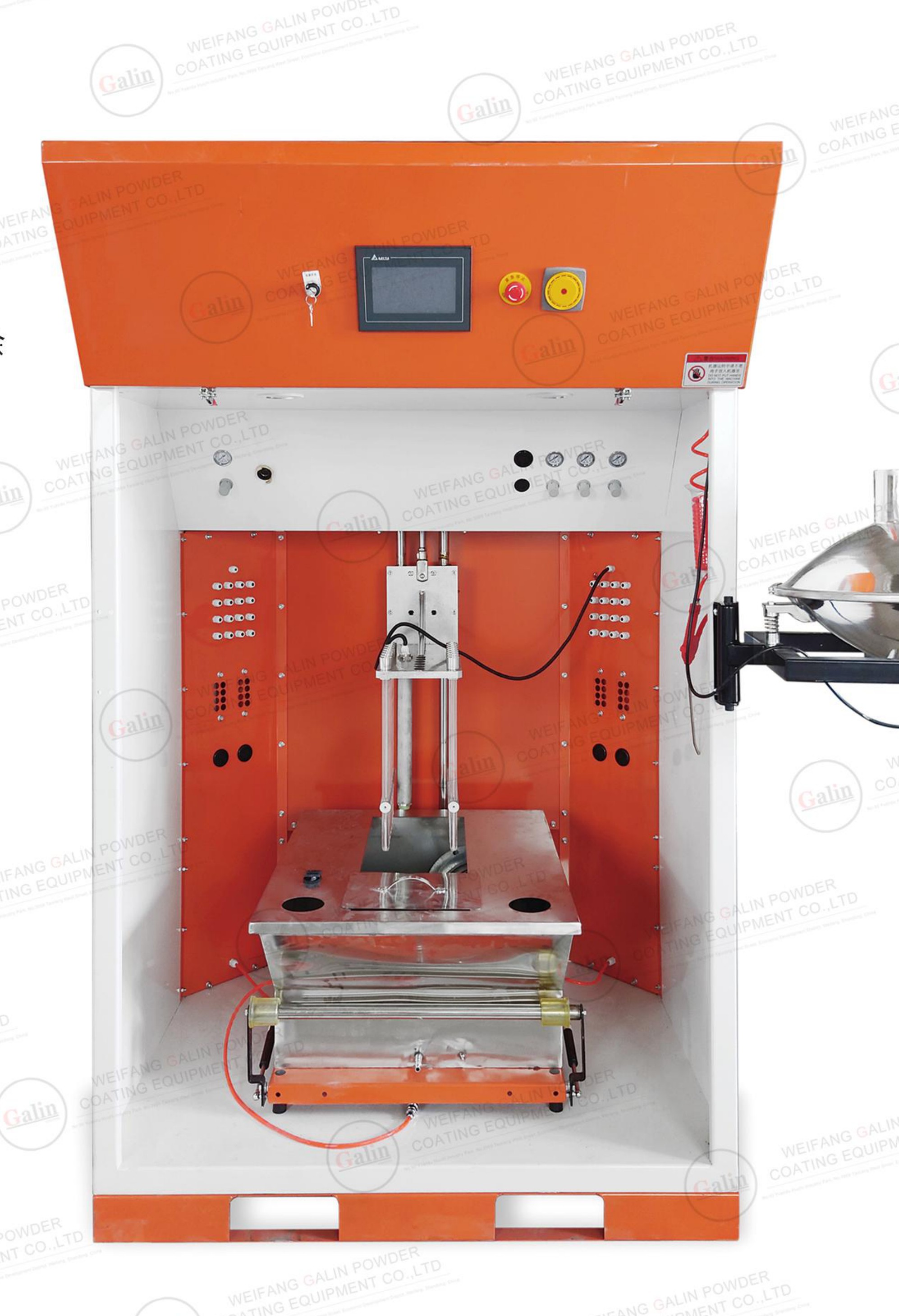

Quick Color-Change Spray Booth, GPS-01
A self-cleaning quick color-change spray station with touchscreen control, built for automated lines needing frequent color changes.
painting machines-and-tools

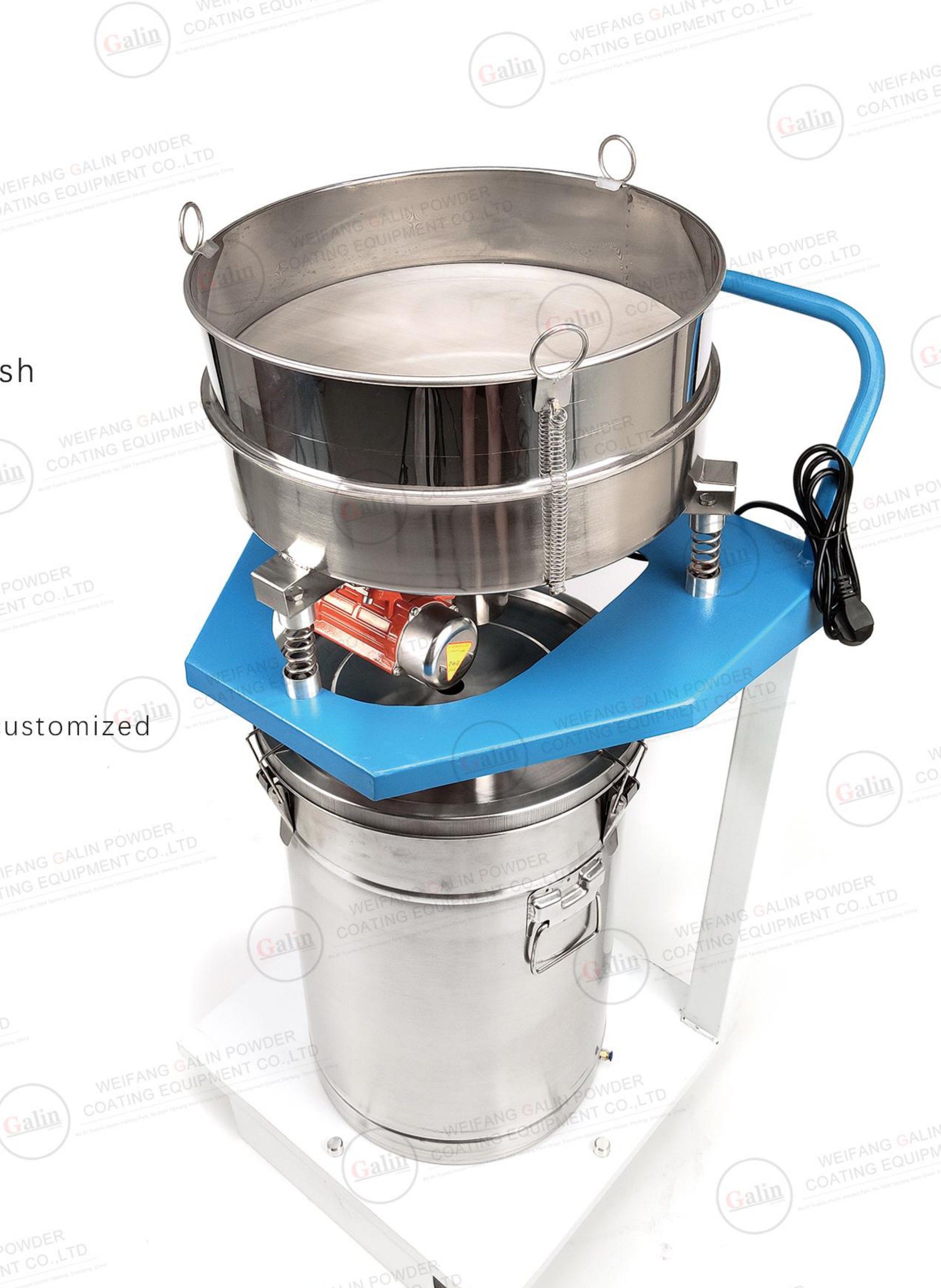

Vibrating Powder Sieve, LV-02
A simple-to-use vibrating powder sieve with an interchangeable stainless steel mesh screen, suited to a wide range of workshop environments.
